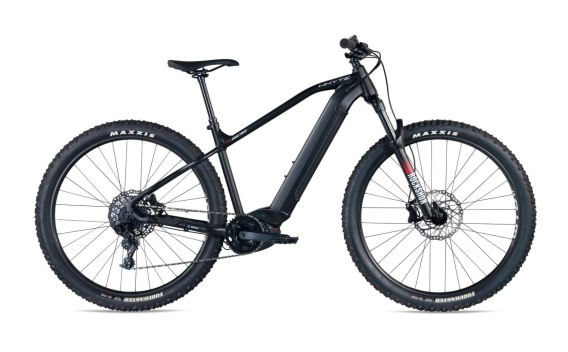

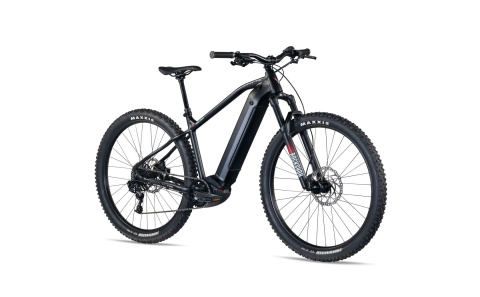

• E-505 29er SIZE MEDIUM

The Symbol : WE505V1-DEMO

LINE sale - last bike in size M [New bike]

23499.00 -34% 15499.00
By the end of the promotion left :
Lowest price in the last 30 days:
15499
Pcs Add to wishlist
The loyalty program is only available for logged in customers.
Reviews
Shipping within 48 hours
Shipping price The Lack Of
The Availability Of LAST ONE ON STOCK !!
The Weight Of The 30 kg

"Click&Collect" - +48 697 99 33 50

Leave your phone

Amplify Your Fun

Stylishly rugged looks and top quality ‘real off road’ components truly make the E-505 the highly capable Land Rover Defender of e-bikes. Whether you want to ride with friends, stay fit and healthy, explore the countryside, or get the blood pumping pushing your limits, our E-505 is the perfect off-road partner to do it all. With its mix of easy speed and long-range freedom together with the confidence to explore everywhere, it makes any surface from road to forest trails huge fun while taking the worry out of hills and long distances.

Highlights
– A highly capable and confident-inspiring ride
– Light and robust 6061 T-6 aluminum frame
– Powerful and reliable Bosch Performance Line CX 85Nm motor
– Large capacity Bosch PowerTube 500Wh removable battery
– Smooth-rolling 29in (aka ‘29er’) wheels + high volume Maxxis tyres
– Fast-shifting and durable 1x11 SRAM transmission (36T chainring x 11-42T cassette)
– Powerful four-piston hydraulic disc brakes for reliable all-weather braking

Why E-505?
The E-505 takes all that we know about exceptional mountain bike hardtail geometry and adds a powerful and reliable Bosch motor, battery and controls to give you a huge range of everyday use – from trail riding to commuting, or both in one day – together with a confident-inspiring ride feel.

Our E-505 electric mountain bike is designed by the same team as our award-winning conventional mountain bikes and benefits from all their knowledge and riding experience. The same handling genius that our designers use to win national championships is what’ll make you feel totally in control on slippery, bumpy tracks or zooming down a gravel descent in the forest. The upright position and wide bars make just as much sense for cruising back country lanes, short cutting through town or just making the most of the views this bike can take you to.

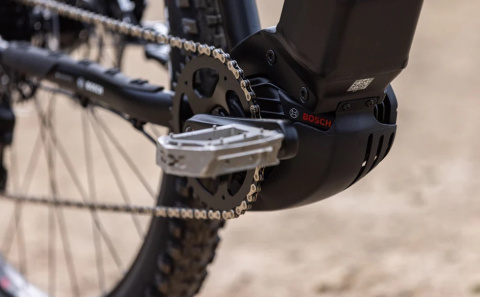

The powerful, premium Bosch motor will have got you to the top of that hill with effortless ease and the Purion handlebar display will tell you clearly how far you’ve still got to enjoy and explore. Intelligent motor modes give the best possible range from the big 500Wh battery for hours of adventures. Fitting the battery inside the super tough, mountain bike frame keeps it sealed, safe and sleek but it’s easy to remove for charging inside. The frame mounted motor means perfect handling balance and the smoothest ride and just like the internally routed controls it’s fully protected from the weather. Legendary Bosch reliability means you’ll never miss a ride or worry about getting home either.

Features & Equipment
While the E-505 is super easy to ride whatever your biking experience it’s fully ready to back up your bravest moves too. Rolling on larger 29in wheels that make bumps proportionally smaller so you roll over them faster and more smoothly, we’ve dressed the wide wheel rims with high-volume 29x2.6in Maxxis tyres to deliver great grip and comfort off-road. The gyroscopic effect of those larger 29in wheels makes them more stable too, so those faster speeds feel safer. RockShox suspension is the original and best and the SRAM gears are super simple to use whether you need a winch for silly uphills or warp speed down the other side. Four piston disc brakes with oversized rotors guarantee safety whatever the weather too.

Looking for the same ride feel but need a small XS or frame size, or a shorter reach across a size M? Look at our E-504 e-hardtail with its smaller 27.5in wheels.

All our electric assist off road bikes, from the smaller wheeled E-504 to the E-506 SUV come with a remote-controlled dropper seat post as standard. This lets you lower the saddle with a switch on the handlebars so you can stop or start with both your feet flat on the floor. It also makes getting on and off the bike easier wherever you are too and even helps when you’re riding by the seat of your pants on trickier trails. That’s why we guarantee if you were wondering why we fit one at first, you’ll soon be wondering how you ride a bike without one.



e-BIKE SPECIFIC SPECIFICATION
DRIVE UNIT Performance CX 85Nm BATTERY CHARGER 2 Amp
BATTERY 500Wh DISPLAY Purion




SIZES
M L XL
5'6" - 5'10″ 5'10" - 6'2″ 6'2″ - 6'5″
168 - 178 cm 178 - 188 cm 188 - 196 cm



Geometry

SIZE M L XL
A HEAD TUBE ANGLE 65.5  65.5 65.5
B SEAT TUBE ANGLE 74.5  74.5 74.5
C TOP TUBE HORIZONTAL 626  645  663
D BB HEIGHT ABOVE GROUND 305  305  305
E STAND OVER HEIGHT 825  844  851
WHEEL BASE 1198  1217  1237
G CHAIN STAY LENGTH 450 450  450
H SEAT POST DIAMETER 30.9  30.9 30.9
I HEAD TUBE LENGTH 115  125  135
J SEAT TUBE LENGTH 444.5  495.7  533.4
STACK 645  655  664
REACH 447  463  479

Battery 500 Wh
Brake levers Tektro Orion
Cassette SRAM PG-1130, 11-42, 11 Speed
Category eBikes
Chain KMC NPBK Sport, 11 Speed
Crankset Whyte, Steel narrow/wide, 165mm, Direct Mount 38T for Bosch Performance Line CX, Black
Display Bosch Purion
Frame 6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Custom Drawn, Tapered Headtube, Internal Cable Routing for Dropper Post and 12mm X 148mm Boost Dropouts
Frame Colour Matt Black Grey/Rose
Frame Type Aluminium
Front Brakes Tektro Orion, 4-Piston with Sintered Metal Pads, 200mm Disc, Post Mount
Front Fork RockShox 35 Gold RL 29", 120mm Travel, 44mm Offset, DebonAir, Fast Black Coating, Adjustable Compression and Rebound, Tapered Steerer, 110mm x 15mm Boost, Maxle Lite
Front fork (travel) 120 mm
Front Hub Alloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Thru Axle, 31mm Torque Caps, 32 Hole
Front Tyre Maxxis Forekaster TR 29" x 2.6" 60TPI, EXO Sidewall Protection
Gear levers SRAM GX, 11 Speed
Grips Whyte Lock-on V Grip
Handlebars Whyte 6061 Alloy, 30mm Rise, 31.8mm, 780mm Wide
Headset FSA No. 57B Orbit ZS, 1 1/2" Lower and 1 1/8" Upper Caged Bearings
Max. torque 85Nm
Maximum tyre width 2,6"
Motor Bosch Performance Line CX (Gen 4). 85 Nm max Torque, 250 W nominal power, 2.79 kg 4 Power settings including progressive eMTB mode which automatically adjusts the support
Rear Brakes Tektro Orion, 4-Piston with Sintered Metal Pads, 200mm Disc, Post Mount, Internal Routing
Rear Derailleur SRAM GX, 11 Speed
Rear Hub Alloy, e-bike specific, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Thru Axle, 32 Hole
Rear Tyre Maxxis Forekaster TR 29" x 2.6" 60TPI, EXO Sidewall Protection
Rims WTB ST i30 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole
Saddle Whyte Custom, Triple Panel Design

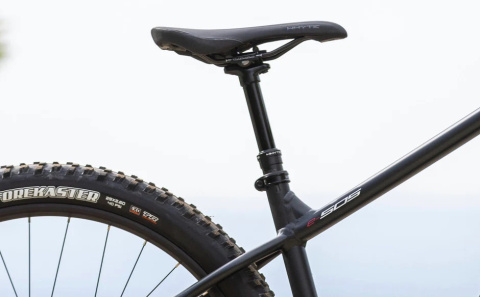

Seatpost Whyte drop.it, 30.9, 150mm Travel, Paddle Remote Lever
Spokes DT Swiss Champion 2.0mm, Black Stainless, Brass Nipples
Stem Whyte Alloy 6061, 35mm Extension
Wheel Size 29"
