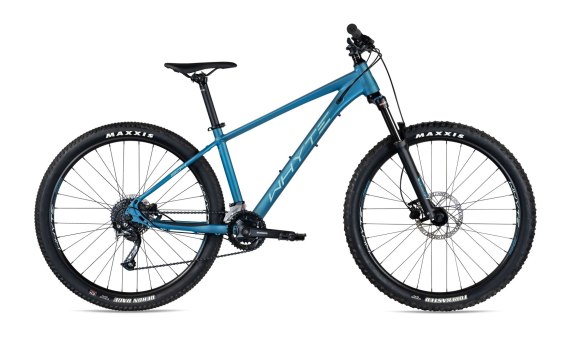

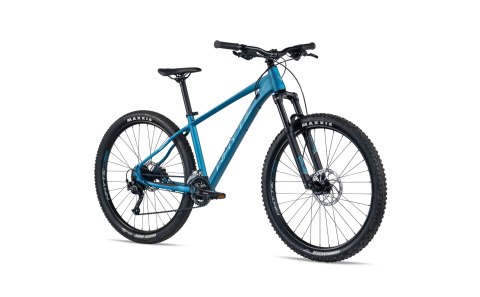

The updated MBR 'Hardtail of the Year' 600 series frames feature Whyte's award-winning skill and smile multiplying Trail geometry with ultra-responsive short stem/wide bar steering to master every metre of trail. The patented Getta Grip seat clamp means you're ready for the steepest descent in a second while carefully sculpted frame tubes turn rowdy trail noise into a big grin buzz. Full Shimano transmissions and fast rolling 2.2 WTB Ranger tyres mean you can fly back up for another go or turn a quick explore into an epic adventure.Internal BBX control routing and colour coded components give red carpet looks with back country toughness. The 600 series is essentially everything you'd expect from a Whyte mountain bike at a price you wouldn't expect.
Sizes:
| XS | S | M | L |
| 4'9" - 5'1″ | 5'1″ - 5'5″ | 5'5″ - 5'9" | 5'9" - 6'1″ |
| 145 - 155 cm | 155 - 165 cm | 165 - 175 cm | 175 - 185 cm |
Geometria:
| SIZE | XS | S | M | L |
| A HEAD TUBE ANGLE |
66.5 | 66.5 | 66.5 | 66.5 |
| B SEAT TUBE ANGLE |
74 | 74 | 74 | 74 |
| C TOP TUBE HORIZONTAL |
580 | 599 | 618 | 636 |
| D BB HEIGHT ABOVE GROUND |
303.5 | 303.5 | 303.5 | 303.5 |
| E STAND OVER HEIGHT |
761 | 779 | 803 | 826 |
| F WHEEL BASE |
1123 | 1143 | 1163 | 1183 |
| G CHAIN STAY LENGTH |
435 | 435 | 435 | 435 |
| H SEAT POST DIAMETER |
30.9 | 30.9 | 30.9 | 30.9 |
| I HEAD TUBE LENGTH |
107 | 115 | 125 | 135 |
| J SEAT TUBE LENGTH |
381 | 406 | 444 | 482.6 |
| STACK | 602 | 609 | 619 | 628 |
| REACH | 407 | 424 | 440 | 456 |
| Brake levers | Tektro HD-M275 |
| Cassette | Shimano CS-HG-200, 11-36, 9 Speed |
| Chain | SunRace, 9 Speed |
| Crank | Shimano FC-MT101, Double 36-22, 9 Speed |
| Frame | 6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Internal Cable Routing with BBX, Chainstay Post Mount Dropouts |
| Frame Colour | Matt Diesel Light Blue/Slate |
| Front Brakes | Tektro HD-M275, Hydraulic, 180mm Rotor |
| Front derailleur | Shimano Altus FD-M2020 |
| Front Fork | SR Suntour XCR-LO 27.5", 120mm Travel, Tapered Steerer, Hydro Lockout, Fixed Rebound Damping, Black Stanchions |
| Front fork (travel) | 120 mm |
| Front Hub | Alloy, Cup & Cone, Double Seal, 32 Hole |
| Front Tyre | MAXXIS Forekaster 27.5" x 2.35" |
| Gear levers | Shimano Altus SL-M2010, 9 Speed |
| Grips | Whyte Lock-on V Grip |
| Handlebars | Whyte 6061 Alloy, 30mm Rise, 31.8mm, 740mm Wide |
| Headset | FEIMIN H807B, Semi Integrated, 1 1/8" Lower 1 1/2 Lower Caged Bearings |
| Pedals | Fibre Reinforced Composite Platform |
| Rear Brakes | Tektro HD-M275, Hydraulic, 160mm Rotor, Internal Routing |
| Rear Derailleur | Shimano Altus RD-M2000-SGS, 9 Speed |
| Rear Hub | Alloy, Cup & Cone, Double Seal, 32 Hole |
| Rear Tyre | MAXXIS Recon Race 27.5" x 2.25" Rear Wire Bead |
| Rims | Whyte Trail 25, Tubeless Compatible, 32 Hole |
| Saddle | Whyte Custom, Compact Fit |
| Seatpost | Whyte 6061 Alloy, 12mm Offset, 30.9mm x 350mm, 2 Bolt Clamp |
| Spokes | 2.0mm, PG, Black Stainless, Brass Nipples |
| Stem | Whyte Alloy, XS/S 35mm, M 45mm |
| Support | Square Interface, Cartridge Bearings, 73mm |
| Wheel Size | 27,5" |
