• E-160 S V1 SIZE S

The Symbol : WE160S-V1-S

DEMO BIKE - BUT mileage about 10-20 km because the new Bosch engine is installed! + shipping cost: PLN 200 PRICE OPEN TO MINIMAL NEGOTIATION

Size
S
29599.00 -46% 15999.00
By the end of the promotion left :
Lowest price in the last 30 days:
16499
Pcs Add to wishlist
The loyalty program is only available for logged in customers.
Reviews
Shipping within 48 hours
Shipping price The Lack Of
The Availability Of LAST ONE ON STOCK !!
The Weight Of The 30 kg

"Click&Collect" - +48 697 99 33 50

Leave your phone

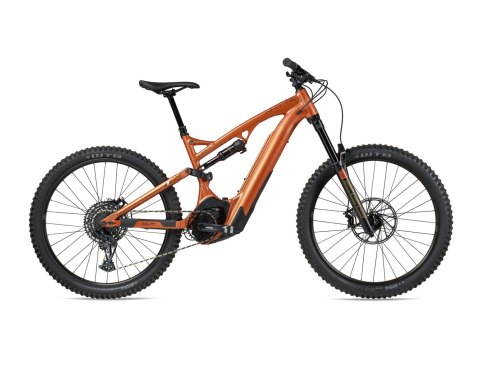

E-160 S V1 size S (160-168cm)

DEMO BIKE - BUT the mileage is about 10-20 km because the new Bosch engine is installed!

Very good/good condition. The bike is covered with a protective film. After a full service (at Bike Doctor Servis), chain replacement, and all com elements necessarily along with drive adjustment.


The e-160 is the successor to the e-150. It has increased travel to 160 mm, revised some components, slightly increased ground clearance, new, better cable routing to the engine and adjustable frame geometry*. Suspension on the E-160S is the latest RockShox ZEB 27.5" 160mm fork, with 44mm offset and great stiffness, and a RockShox Deluxe Select + RT, DebonAir shock.

The SRAM GX Eagle drivetrain and SRAM Guide GE brakes with 220mm rotors are a set that guarantees the highest quality. We developed stronger wheels using the new asymmetric WTB HTZ i30 TCS 2.0 System rims, dedicated to e-bikes, which have thicker walls and use a sleeve connection. The model is available in the entire size range, i.e. from XS to XL.

The high-torque Bosch Gen 4 motor is super-compact with an ultra-smooth power delivery that simulates normal pedalling, and range concerns shouldn't be an issue as we fit a massive 625Wh battery as standard. For MY21, the engine torque has been increased to 85Nm and the e-MTB mode has many improved features. You can read more about the Bosch Performance Line system here>>> (and redirection to this subpage about Bosch)



*Shape It Link is a specially designed Shock Extender to fit all Whyte full suspension bikes equipped with a standard Shock Extender. Thanks to this solution, you can individually adjust the bike to your riding style and the terrain in which you want to move. Then you change the height of the bottom bracket from the ground and the angle of the head tube (table in the attachments). However, this has no effect on the lever ratio or suspension kinematics.



SIZES
XS S M L XL
4'7″ - 5'3" 5'3" - 5'6″ 5'6" - 5'10″ 5'10" - 6'2″ 6'2" - 6'6″
145 - 160 cm 160 - 168 cm 168 - 178 cm 178 - 188 cm 188 - 198 cm




GEOMETRY

Dane w tabeli podane się w milimetrach.

SIZE XS S M L XL
A - kąt główki 64 65 65 65 65
B - kąt rury podsiodłowej 75.4 75.2 75 74.8 74.6
C - górna rura 557.7 579.2 609.1 638.3 667.8
D - wysokość suportu 330 330 330 330 330
E - wysokość górnej ramy 792 807 822 822 824
F - rozstaw osi 1186 1197.6 1228.5 1258.6 1289.1
G - odległość oś suportu - oś tylnego koła 442 442 442 442 442
H - sztyca podsiodłowa 30.9 30.9 30.9 30.9 30.9
I - główka ramy 112 116 130 142 155
J - rura podsiodłowa 368.3 406.4 431.8 457.2 482.6
Stack 598.1 607.3 620 630.9 642.7
Reach 410 430 455 480 505
Battery Bosch 625 Wh internal PowerTube. Reaches full charge in 5 hours with supplied 4A Compact Charger, 80% charge from 0 in 2.5 hours
Bottom Bracket N/A
Brake levers SRAM Guide RE, MMX
Cassette SRAM PG-1210 Eagle, 11-50, 12 Speed
Category eBikes, Full Suspension
Chain SRAM GX Eagle, 12 Speed
Crankset SRAM EX1, 165mm, ISIS with X-SYNC 2, Direct Mount 34T for Bosch Gen 4, Black
Display Bosch Purion
Frame 6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Custom Drawn, Tapered Headtube, Internal Cable Routing for Dropper Post and 12mm X 148mm Boost Dropouts
Frame Colour Matt Burnt Orange with Black & Earth
Frame Type Aluminium
Front Brakes SRAM Guide GE, 4 Pot with Sintered Metal Pads, 220mm Rotor
Front derailleur N/A
Front fork (travel) 160 mm
Front Hub Alloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Through Axle, 31mm Torque Caps, 32 Hole
Front Suspension RockShox ZEB 27.5", 160mm Travel, 44mm Offset, DebonAir, Charger R Damper, Fast Black Coating, Tapered Steerer, 110mm x 15mm Boost, Maxle Ultimate
Front Tyre WTB Verdict TCS System 27.5" X 2.5" Light/High Grip, Tri-Tec triple compound High Grip rubber, Lightweight Casing,
Gear levers SRAM GX-E Eagle, Single Click, MMX, 12 Speed
Grips Whyte Lock-on V Grip
Handlebars Whyte Custom 6061 Alloy, 30mm Rise, 35mm Bar Bore, 780mm Wide
Headset FSA No. 57E Orbit ZS, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings
Motor Bosch Performance Line CX (Gen 4). 85 Nm max Torque, 250 W nominal power, 2.79 kg 4 Power settings including progressive eMTB mode which automatically adjusts the support
Pedals Not Included
Rear Brakes SRAM Guide GE, 4 Pot with Sintered Metal Pads, 200mm Rotor
Rear Derailleur SRAM GX Eagle, 12 Speed
Rear Hub Alloy, E-bike specific, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Through Axle, 32 Hole
Rear Shock RockShox Deluxe Select + RT, DebonAir, Fast Black Coating, Adjustable Rebound, 2 position compression adjustment
Rear Tyre WTB Verdict TCS System 27.5" X 2.5" Tough/High Grip, Tri-Tec triple compound, Fast Rolling rubber, Enduro Casing
Rims WTB HTZ i30 TCS 2.0 System, Asymmetric, Sleeved Joint, Super Tough Construction, Tubeless Ready, 32 Hole
Saddle Whyte Custom, Triple Panel Design
Seatpost Whyte drop.it Adjust, 30.9mm, XS/S 120-150mm Travel, M/L 140-170mm Travel, XL 170-200mm Travel, Paddle Remote Lever
Spokes DT Swiss Champion 2.0mm, Black Stainless, Brass Nipples
Stem Whyte Enduro Stem, 35mm Bar Bore, 35mm Extension
Wheel Size 27,5"
