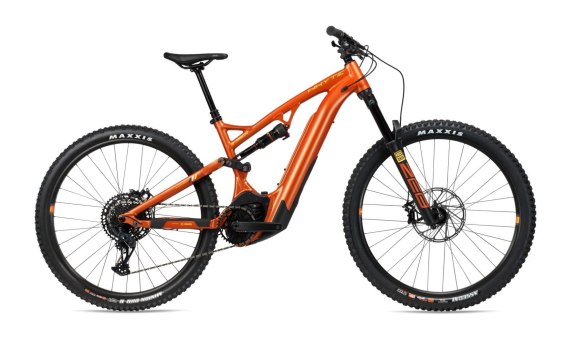

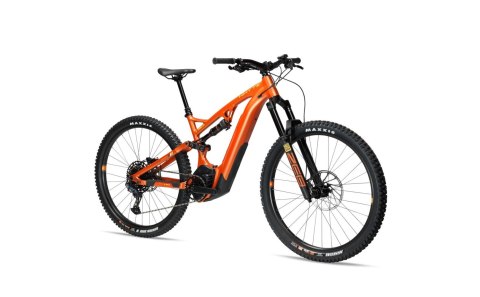

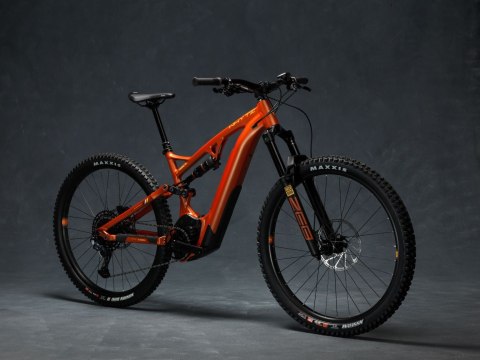

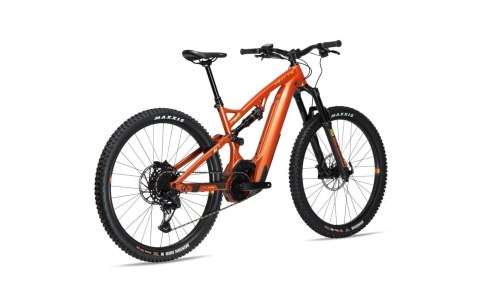

• E-150 S 29er V2

The Symbol : W150SV2-29

DEMO BIKE. Mileage +/- 2000km + shipping cost: PLN 200

Colour
Size
M
Suspension Bearings
Enduro Max Double Row Bearings
34299.01 -50% 16999.00
By the end of the promotion left :
Lowest price in the last 30 days:
17499
Pcs Add to wishlist
The loyalty program is only available for logged in customers.
Reviews
Shipping within 48 hours
Shipping price The Lack Of
The Availability Of LAST ONE ON STOCK !!
The Weight Of The 30 kg

"Click&Collect" - +48 697 99 33 50

Leave your phone

The frame is covered with a thick protective foil, clearly visible in the photos - the buyer decides whether the foil stays or needs to be removed.

This is the second generation "full" with electric assistance on 29-inch wheels and adjustable frame geometry*. The V2 version has the same geometry as the previous one, but a few components have been changed. First, the fork is now a RockShox ZEB 29" with 150mm travel (44mm offset). The rear is still the reliable RS Deluxe Select+ RT (140mm). The model will continue to be available in 3 sizes: M, L and XL. Support is still provided by the Bosch Performance CX Gen 4 with a maximum torque of 85Nm, Powertube 625Wh battery and Purion control. The drivetrain has been changed to a Sram GX Eagle 12, with an 11-50 cassette, and a 165mm crank with 36t sprocket Wheels rebuilt on 30mm WTB HTZ i30 TCS 2.0 rims and DT Swiss Champion 2.0mm spokes with Maxxis Assigai WT and Minion DHR II tires for grip.

The uncompromising geometry of the Whyte OTO combined with a very low center of gravity means excellent handling, balance and control. This is due to the location of the motor (rotated) and the battery frame inserted from the bottom. This gives maximum structural integrity with minimum weight and torsional rigidity. Bosch's complete eSystem offers reliability and unrivaled support. You can read more about the Bosch Performance Line system here >>>

It is an extremely fast, stable and well-equipped E-29er that will give a lot of fun in the bike park and on difficult mountain trails.



*Shape It Link is a specially designed Shock Extender to fit all Whyte full suspension bikes equipped with a standard Shock Extender. Thanks to this solution, you can individually adjust the bike to your riding style and the terrain in which you want to move. Then you change the height of the bottom bracket from the ground and the angle of the head tube (table in the attachments). However, this has no effect on the lever ratio or suspension




Sizes
M L XL
5'6" - 5'10″ 5'10" - 6'2″ 6'2" - 6'6″
168 - 178 cm 178 - 188 cm 188 - 198 cm




Geometry

Dane w tabeli podane się w milimetrach.

Size M L XL
A - kąt główki 64.7 64.7 64.7
B - kąt rury podsiodłowej 74.9 74.7 74.5
C - górna rura 611 641 676
D - wysokość suportu 341 341 341
E - wysokość górnej ramy 814 828 828
F - rozstaw osi 1230 1261 1298
G - odległość oś suportu - oś tylnego koła 445 445 445
H - sztyca podsiodłowa 30.9 30.9 30.9
I - główka ramy 120 133 148
J - rura podsiodłowa 431.8 457.2 482.6
Stack 634 643 657
Reach 451 476 506
Battery Bosch 625 Wh internal PowerTube. Reaches full charge in 5 hours with supplied 4A Compact Charger, 80% charge from 0 in 2.5 hours
Bottom Bracket N/A
Brake levers Shimano Deore BR-M6100, I-Spec EV
Cassette SRAM PG-1210 Eagle, 11-50, 12 Speed
Category eBikes, Full Suspension
Chain SRAM GX Eagle, 12 Speed
Crankset Whyte, forged alloy, 165mm, X-SYNC 2, Direct Mount 36T for Bosch Performance Line CX, Black
Damper installation length 210mm
Display Bosch Purion
Frame 6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Custom Drawn, Tapered Headtube, Internal Cable Routing and 12mm X 148mm Boost Dropouts
Frame Type Aluminium
Front Brakes Shimano Deore MT-M6120, 4 Pot 203mm Rotor
Front derailleur N/A
Front fork (travel) 150 mm
Front Hub Alloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Thru Axle, 31mm Torque Caps, 32 Hole
Front Suspension RockShox ZEB 29", 150mm Travel, 44mm Offset, DebonAir, Charger R Damper, Fast Black Coating, Tapered Steerer, 110mm x 15mm Boost, Maxle Ultimate
Front Tyre Maxxis Assigai WT, TR, 29" x 2.5" 120TPI, EXO+ Casing, 3C Maxx Grip, Dual Compound
Gear levers SRAM GX-E, Eagle, Single Click, MMX, 12 Speed
Grips Whyte Lock-on Enduro Grip
Handlebars Whyte Custom 6061 Alloy, 30mm Rise, 35mm Bar Bore, 780mm Wide
Headset FSA No. 57E Orbit ZS, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings
Motor Bosch Performance Line CX (Gen 4). 85 Nm max Torque, 250 W nominal power, 2.79 kg 4 Power settings including progressive eMTB mode which automatically adjusts the support
Pedals Not Included
Rear Brakes Shimano Deore MT-M6120, 4 Pot 203mm Rotor
Rear Derailleur SRAM GX Eagle, 12 Speed
Rear Hub Alloy, e-bike specific, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Thru Axle, 32 Hole
Rear Shock RockShox Deluxe Select + RT, DebonAir, Fast Black Coating, Adjustable Rebound, 2 position compression adjustment
Rear Shock (mm) 140mm
Rear Tyre Maxxis Minion DHR II WT, TR, 29" x 2.4" 2x120TPI, Double Down, 3C Maxx Terra, Dual Compound, Folding Bead
Rims WTB HTZ i30 TCS 2.0 System, Asymmetric, Sleeved Joint, Super Tough Construction, Tubeless Ready, 32 Hole
Saddle Fizik Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail
Seatpost Whyte drop.it Adjust, 30.9mm, M/L 140-170mm Travel, XL 170-200mm Travel, MMX Paddle Remote Lever
Spokes DT Swiss Champion 2.0mm, Black Stainless, Brass Nipples
Stem Whyte Enduro Stem, 35mm Bar Bore, 35mm Extension
Suspension Setting 50mm, Sag 14mm (25%) to 17mm (30%)
Wheel Size 29"
