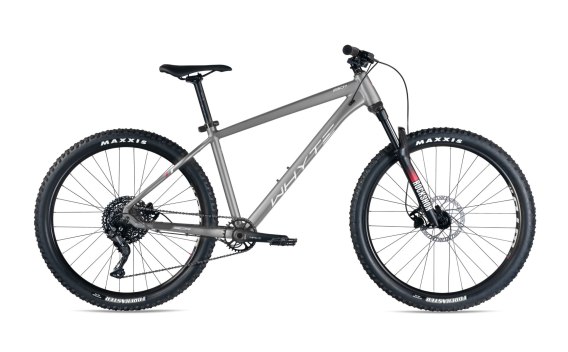

• 801 V4

The Symbol : W801V4

New !

Size
7299.00 -41% 4299.00
By the end of the promotion left :
Lowest price in the last 30 days:
4399
Pcs Add to wishlist
The loyalty program is only available for logged in customers.
Reviews
Shipping within 48 hours
Shipping price The Lack Of
The Availability Of LAST ONE ON STOCK !!
The Weight Of The 12 kg

"Click&Collect" - +48 697 99 33 50

Leave your phone

Whyte's 800 hardtails have always offered a fine blend of fun, control and speed. Our SCR design, with no need for an inner chainring clearance, means our engineers were able to re-shape our custom chainstays for improved agility and a more dynamic ride.

The 800 Series frame uses the very latest Whyte geometry, based around a longer top tube, a short stem and wide 780mm bar, providing exceptional handling, balance and control. The 800 series bikes also feature a 120mm travel fork, for trail-bike levels of performance.

A Boost 148mm rear dropout allows up to a 2.8” tyre to be fitted and provides increased mud clearance for year-round trail riding.



Sizes:

S M L XL
5'2″ - 5'6″ 5'6″ - 5'10" 5'10" - 6'2″ 6'2″ - 6'5″
157 - 168 cm 168 - 178 cm 178 - 188 cm 188 - 196 cm



Geometry:



SIZE S M L XL
A
HEAD TUBE ANGLE
64.5 64.5 64.5 64.5
B
SEAT TUBE ANGLE
74.5 74.5 74.5 74.5
C
TOP TUBE HORIZONTAL
599 627 650 678
D
BB HEIGHT ABOVE GROUND
303.5 303.5 303.5 303.5
E
STAND OVER HEIGHT
780 802 826 855
F
WHEEL BASE
1171 1201 1226 1256
G
CHAIN STAY LENGTH
440 440 440 440
H
SEAT POST DIAMETER
30.9 30.9 30.9 30.9
I
HEAD TUBE LENGTH
115 125 135 145
J
SEAT TUBE LENGTH
406 444 482.6 533
STACK 607 616 625 634
REACH 430 456 477 502
Bottom Bracket BSA, Cartridge Bearings, 73mm
Brake levers Tektro Auriga HD-M280
Cassette SunRace CSMS2, ED Black, 11-46, 10 Speed
Category Hardtail
Chain SunRace 10 Speed
Crankset Whyte, Forged 2pcs Cranks, Direct Mount 32T Narrow/Wide Chainring, 170mm, 10 Speed
Frame 6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, SCR, Tapered Headtube, Get A Grip Seat Clamp System, Internal Cable Routing with BBX63 and Chainstay Post Mount Dropouts 12mm X 148mm Boost
Frame Colour Matt Granite Chalk/Rose
Frame Type Aluminium
Front Brakes Tektro Auriga HD-M280, 180mm Disc
Front Fork RockShox Recon RL 27.5", 120mm Travel, 37mm Offset, Solo Air, Fast Black Coating, Adjustable Rebound, Tapered Alloy Steerer, 110mm x 15mm Boost, Maxle Lite
Front fork (travel) 120 mm
Front Hub Alloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Thru Axle, 32 Hole
Front Tyre Maxxis Forekaster 27.5"x 2.35" Dual Compound, 60TPI
Gear levers Shimano Deore SL-M4100, 10 Speed
Grips Whyte Lock-on Enduro Grip
Handlebars Whyte 6061 Alloy, 15mm Rise, 31.8mm, S 760mm Wide, M/L/XL 780mm Wide
Headset FSA No. 57B Orbit ZS, 1 1/2" Lower and 1 1/8" Upper Caged Bearings
Maximum tyre width 27.5 X 2.8 Front / 27.5 X 2.3 Back
Pedals Fibre Reinforced Composite Platform
Rear Brakes Tektro Auriga HD-M280, 180mm Disc, 180mm Disc, Internal Routing
Rear Derailleur Shimano Deore RD-M5120-SGS, Shadow Plus, 10 Speed
Rear Hub Alloy, Double Sealed Cartridge Bearings, 10mm x 148mm Boost Thru Axle, 32 Hole
Rear Tyre Maxxis Forekaster 27.5"x 2.35" Dual Compound, 60TPI
Rims WTB ST i27 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole
Saddle Whyte Custom
Seatpost Whyte 6061 Alloy, 15mm Offset, 30.9mm x S/M 350mm, L/XL 400mm, 2 Bolt Clamp
Spokes DT Swiss Champion 2.0mm, Black Stainless, Brass Nipples
Stem Whyte Alloy, 40mm Extension
Tyre Size 2,3-2,6¨
Wheel Size 27,5"
