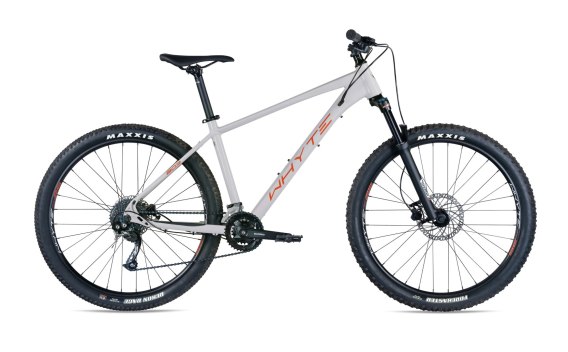

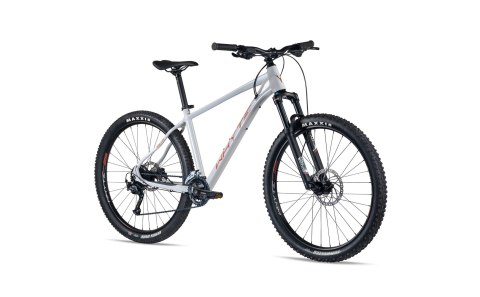

The updated MBR 'Hardtail of the Year' 600 series frames feature Whyte's award-winning skill and smile multiplying Trail geometry with ultra-responsive short stem/wide bar steering to master every metre of trail. The patented Getta Grip seat clamp means you're ready for the steepest descent in a second while carefully sculpted frame tubes turn rowdy trail noise into a big grin buzz. Full Shimano transmissions and fast rolling 2.2 WTB Ranger tyres mean you can fly back up for another go or turn a quick explore into an epic adventure.Internal BBX control routing and colour coded components give red carpet looks with back country toughness. The 600 series is essentially everything you'd expect from a Whyte mountain bike at a price you wouldn't expect.

Sizes:

S M L XL
5'2″ - 5'6″ 5'6″ - 5'10" 5'10" - 6'2″ 6'2″ - 6'5″
157 - 168 cm 168 - 178 cm 178 - 188 cm 188 - 196 cm





Geometria:

SIZE S M L XL
A
HEAD TUBE ANGLE
66.5 66.5 66.5 66.5
B
SEAT TUBE ANGLE
74 74 74 74
C
TOP TUBE HORIZONTAL
604 623 641 660
D
BB HEIGHT ABOVE GROUND
303.5 303.5 303.5 303.5
E
STAND OVER HEIGHT
780 802 826 864
F
WHEEL BASE
1148 1168 1188 1208
G
CHAIN STAY LENGTH
435 435 435 435
H
SEAT POST DIAMETER
30.9 30.9 30.9 30.9
I
HEAD TUBE LENGTH
115 125 135 145
J
SEAT TUBE LENGTH
406 444 482.6 533
STACK 609 619 628 637
REACH 430 445 461 477
Bottom Bracket Square Interface, Cartridge Bearings, 73mm
Brake levers Tektro HD-M275
Cassette Shimano CS-HG-200, 11-36, 9 Speed
Chain SunRace, 9 Speed
Crankset Shimano FC-MT101, Double 36-22, 9 Speed
Frame 6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Internal Cable Routing with BBX, Chainstay Post Mount Dropouts
Frame Colour Gloss Cement Burnt Orange/Slate
Frame Type Aluminium
Front Brakes Tektro HD-M275, Hydraulic, 180mm Rotor
Front derailleur Shimano Altus FD-M2020
Front Fork SR Suntour XCR-LO 27.5", 120mm Travel, Tapered Steerer, Hydro Lockout, Fixed Rebound Damping, Black Stanchions
Front fork (travel) 120 mm
Front Hub Alloy, Cup & Cone, Double Seal, 32 Hole
Front Tyre MAXXIS Forekaster 27.5" x 2.35"
Gear levers Shimano Altus SL-M2010, 9 Speed
Grips Whyte Lock-on V Grip
Handlebars Whyte 6061 Alloy, 30mm Rise, 31.8mm, 760mm Wide
Headset FEIMIN H807B, Semi Integrated, 1 1/8" Lower 1 1/2 Lower Caged Bearings
Pedals Fibre Reinforced Composite Platform
Rear Brakes Tektro HD-M275, Hydraulic, 160mm Rotor, Internal Routing
Rear Derailleur Shimano Altus RD-M2000-SGS, 9 Speed
Rear Hub Alloy, Cup & Cone, Double Seal, 32 Hole
Rear Tyre MAXXIS Recon Race 27.5" x 2.25" Rear Wire Bead
Rims Whyte Trail 25, Tubeless Compatible, 32 Hole
Saddle Whyte Custom
Seatpost Whyte 6061 Alloy, 12mm Offset, 30.9mm x S/M 350mm, L/XL 400mm, 2 Bolt Clamp
Spokes 2.0mm, PG, Black Stainless, Brass Nipples
Stem Whyte Alloy, S 35mm, M/L/XL 45mm
Wheel Size 27,5"
