• E-504 SIZE SMALL

The Symbol : WE504-S-DEMO

LINE sale - last bike in size S [New bike]

23499.00 -36% 14999.00
By the end of the promotion left :
Lowest price in the last 30 days:
15499
Pcs Add to wishlist
The loyalty program is only available for logged in customers.
Reviews
Shipping within 48 hours
Shipping price The Lack Of
The Availability Of LAST ONE ON STOCK !!
The Weight Of The 30 kg

"Click&Collect" - +48 697 99 33 50

Leave your phone

Amplify Your Fun

The E-504 electric hardtail offers the same exceptional ride as our E-505 electric hardtail but runs on smaller 27.5in wheels with a more compact frame and smaller XS, S and M size options so that smaller riders don’t have to compromise their off-road experience – or their expectations.

Stylishly rugged looks and top quality ‘real off road’ components truly make the E-504 the highly capable Land Rover Defender of e-bikes. Whether you want to ride with friends, stay fit and healthy, explore the countryside, or get the blood pumping pushing your limits, our E-504 electric assist mountain bike is the perfect off-road partner to do it all. With its mix of easy speed and long-range freedom together with the confidence to explore everywhere, it makes any surface from road to forest trails huge fun while taking the worry out of hills and long distances.

Highlights
– Perfect for smaller riders with XS, S, and M compact frame sizes
– A highly capable and confident-inspiring ride
– Light and robust 6061 T-6 aluminum frame

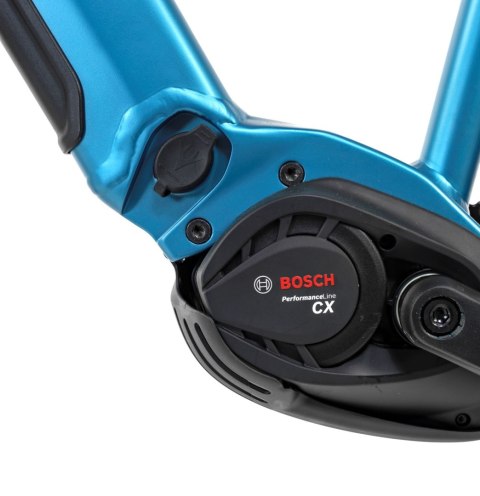

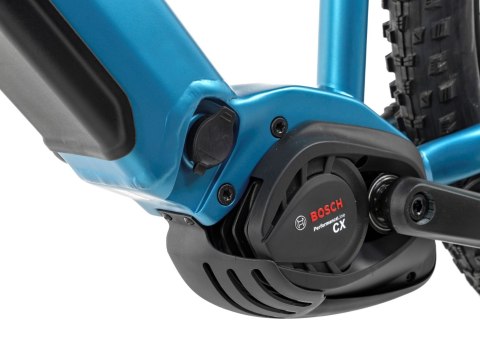

– Powerful and reliable Bosch Performance Line CX 85Nm motor

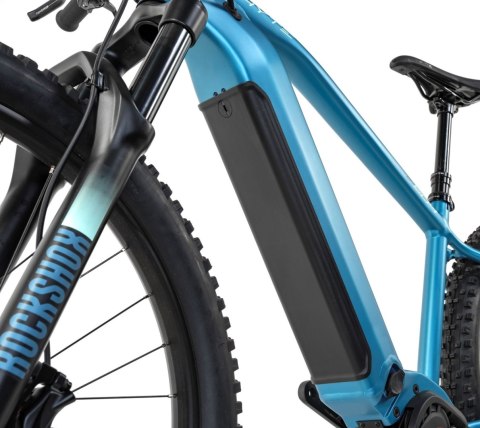

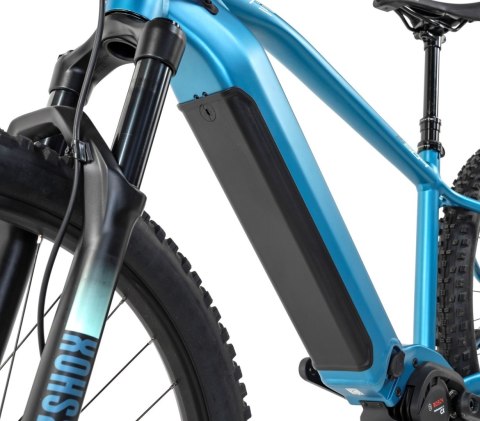

– Large capacity Bosch PowerTube 500Wh removable battery
– Agile 27.5in (aka ‘640b’) wheels + high volume Maxxis tyres
– Fast-shifting and durable 1x11 SRAM transmission (36T chainring x 11-42T cassette)
– Powerful four-piston hydraulic disc brakes for reliable all-weather braking

Why E-504?
The E-504 takes all that we know about exceptional mountain bike hardtail geometry and adds a powerful and reliable Bosch motor, battery and controls to give you a huge range of everyday use – from trail riding to commuting, or both in one day – together with a confident-inspiring ride feel.

Our E-504 electric mountain bike is designed by the same team as our award-winning conventional mountain bikes and benefits from all their knowledge and riding experience. The same handling genius that our designers use to win national championships is what’ll make you feel totally in control on slippery, bumpy tracks or zooming down a gravel descent in the forest. The upright position and wide bars make just as much sense for cruising back country lanes, short cutting through town or just making the most of the views this bike can take you to.

The powerful, premium Bosch motor will have got you to the top of that hill with effortless ease and the Purion handlebar display will tell you clearly how far you’ve still got to enjoy and explore. Intelligent motor modes give the best possible range from the big 500Wh battery for hours of adventures. Fitting the battery inside the super tough, mountain bike frame keeps it sealed, safe and sleek but it’s easy to remove for charging inside. The frame mounted motor means perfect handling balance and the smoothest ride and just like the internally routed controls it’s fully protected from the weather. Legendary Bosch reliability means you’ll never miss a ride or worry about getting home either.

Features & Equipment
While the E-504 is super easy to ride whatever your biking experience it’s fully ready to back up your bravest moves too. Rolling on agile and capable 27.5in wheels that help keep the riding experience in proportion for smaller riders, we’ve dressed the wide wheel rims with high-volume 27.5x2.6in Maxxis tyres to deliver great grip and comfort off-road. RockShox suspension is the original and best and the SRAM gears are super simple to use whether you need a winch for silly uphills or warp speed down the other side. Four piston disc brakes with oversized rotors guarantee safety whatever the weather too.

Looking for the same ride feel but need a larger L or XL frame size, or a longer reach across a size M?

All our electric assist off road bikes, from the big wheeler E-505 to the E-506 SUV//insert link// come with a remote-controlled dropper seat post as standard. This lets you lower the saddle with a switch on the handlebars so you can stop or start with both your feet flat on the floor. It also makes getting on and off the bike easier wherever you are too and even helps when you’re riding by the seat of your pants on trickier trails. That’s why we guarantee if you were wondering why we fit one at first, you’ll soon be wondering how you ride a bike without one.


e-BIKE SPECIFIC SPECIFICATION

DRIVE UNIT Performance CX 85Nm
BATTERY CHARGER 2 Amp
BATTERY 500Wh
DISPLAY

Purion





  SIZES
XS S M
4'10" - 5'2″ 5'2" - 5'6″ 5'6" - 5'10″
148 - 157 cm 157 - 168 cm 168 - 178 cm







Geometry

GEOMETRY
SIZE XS S M
A
HEAD TUBE ANGLE
64
64.5
64.5
B
SEAT TUBE ANGLE
74.5
74.5 74.5
C
TOP TUBE HORIZONTAL
569 590
620
D
BB HEIGHT ABOVE GROUND
305
305
305
E
STAND OVER HEIGHT
712
728
758

WHEEL BASE
1146
1163
1193
G
CHAIN STAY LENGTH
440
440
440
H
SEAT POST DIAMETER
30.9
30.9 30.9
I
HEAD TUBE LENGTH
107
115
115
J
SEAT TUBE LENGTH
381
406
444
STACK
600 610 610
REACH
403 421 450
Battery 500 Wh
Brake levers Tektro Orion
Cassette SRAM PG-1130, 11-42, 11 Speed
Category eBikes
Chain KMC NPBK Sport, 11 Speed
Crankset Whyte, Steel narrow/wide, 165mm, Direct Mount 36T for Bosch Performance Line CX, Black
Display Bosch Purion
Frame 6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Custom Drawn, Tapered Headtube, Internal Cable Routing for Dropper Post and 12mm X 148mm Boost Dropouts
Frame Colour Matt Diesel Light Blue/Slate
Frame Type Aluminium
Front Brakes Tektro Orion, 4-Piston with Sintered Metal Pads, 200mm Disc, Post Mount
Front Fork RockShox 35 Gold RL 27.5", 120mm Travel, 37mm Offset, DebonAir, Fast Black Coating, Adjustable Compression and Rebound, Tapered Steerer, 110mm x 15mm Boost, Maxle Lite
Front fork (travel) 120 mm
Front Hub Alloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Thru Axle, 31mm Torque Caps, 32 Hole
Front Tyre Maxxis Forekaster TR 27.5" x 2.6" 60TPI, EXO Sidewall Protection
Gear levers SRAM GX, 11 Speed
Grips Whyte Lock-on V Grip
Handlebars Whyte 6061 Alloy, XS and S 15mm Rise, 31.8mm, 760mm, M 30mm Rise, 31.8mm, 780mm Wide
Headset FSA No. 57B Orbit ZS, 1 1/2" Lower and 1 1/8" Upper Caged Bearings
Max. torque 85Nm
Maximum tyre width 2,6"
Motor Bosch Performance Line CX (Gen 4). 85 Nm max Torque, 250 W nominal power, 2.79 kg 4 Power settings including progressive eMTB mode which automatically adjusts the support
Rear Brakes Tektro Orion, 4-Piston with Sintered Metal Pads, 200mm Disc, Post Mount, Internal Routing
Rear Derailleur SRAM GX, 11 Speed
Rear Hub Alloy, e-bike specific, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Thru Axle, 32 Hole
Rear Tyre Maxxis Forekaster TR 27.5" x 2.6" 60TPI, EXO Sidewall Protection
Rims WTB ST i30 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole
Saddle Whyte Custom, Triple Panel Design
Seatpost Whyte drop.it, 30.9, XS 100mm, S 125mm, M 150mm Travel, Paddle Remote Lever
Spokes DT Swiss Champion 2.0mm, Black Stainless, Brass Nipples
Stem Whyte Alloy 6061, 35mm Extension
Wheel Size 27,5"
